STINGER
The Next Generation of Superior SMG/PCC Performance

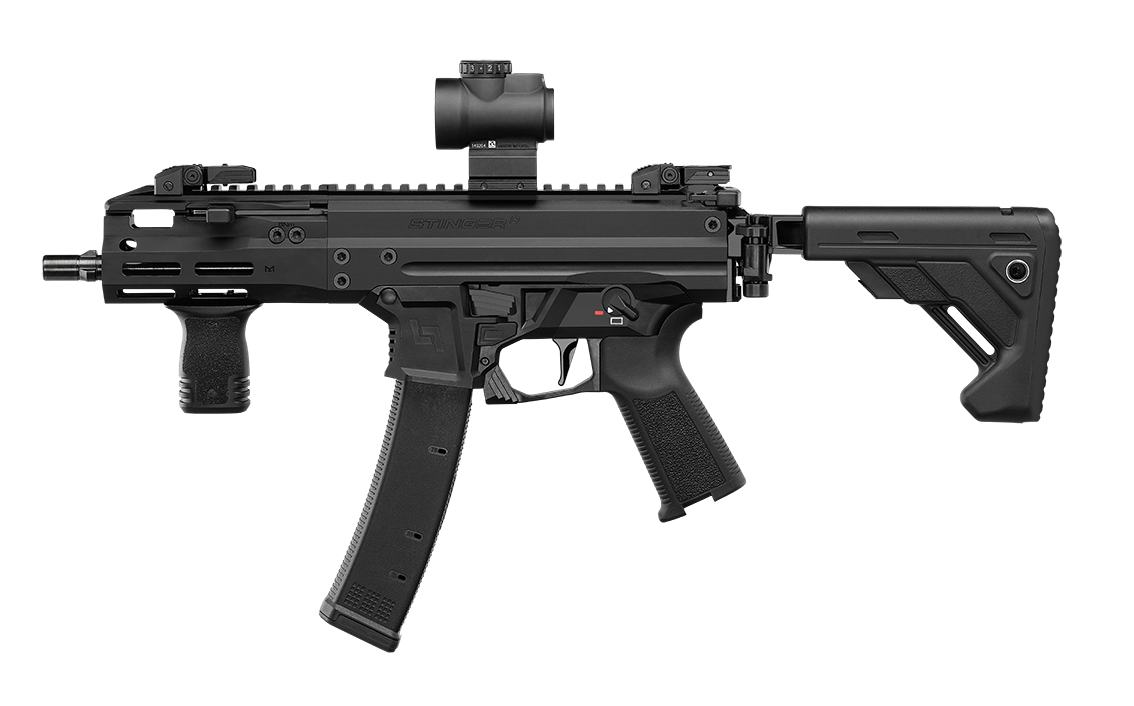

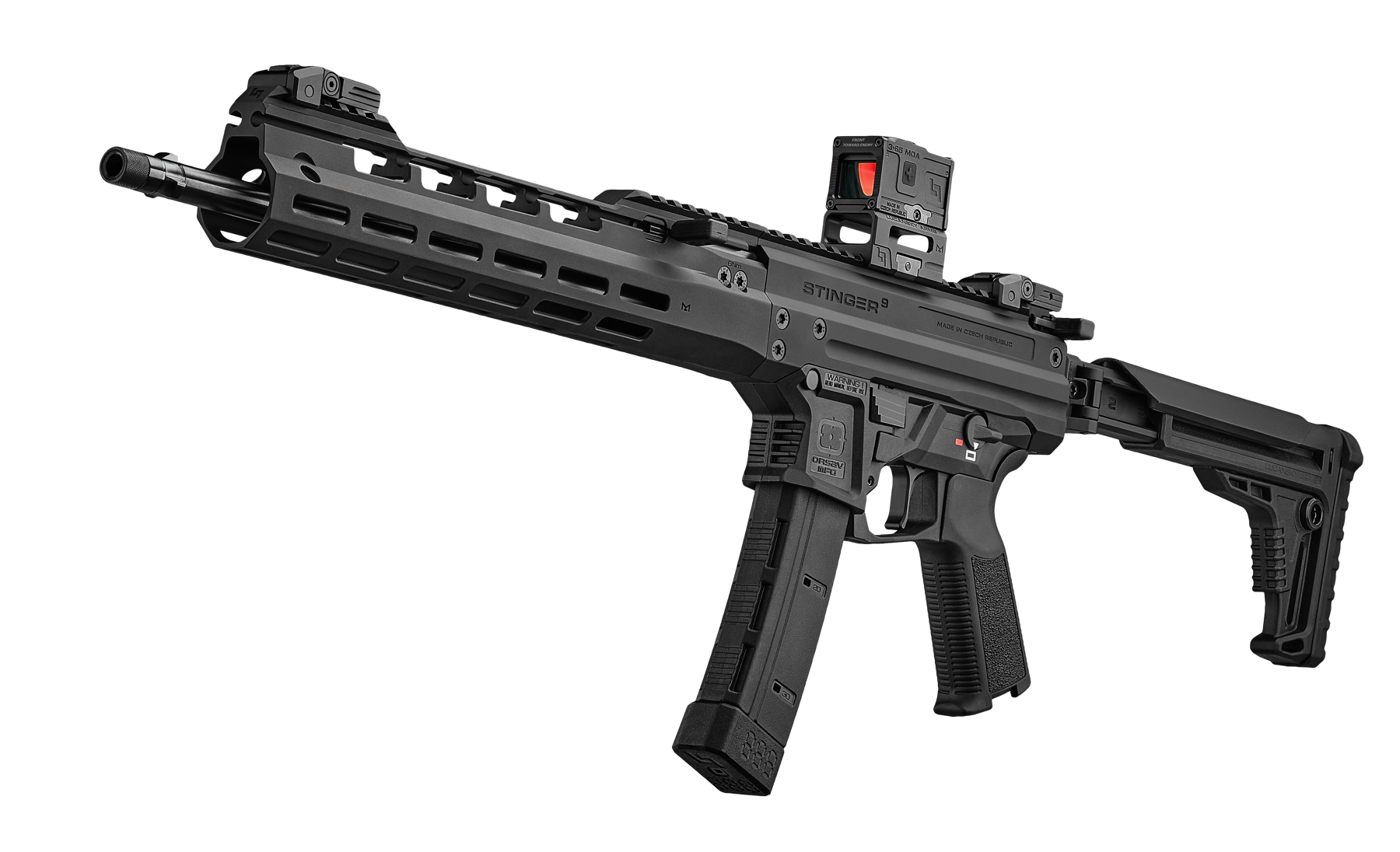

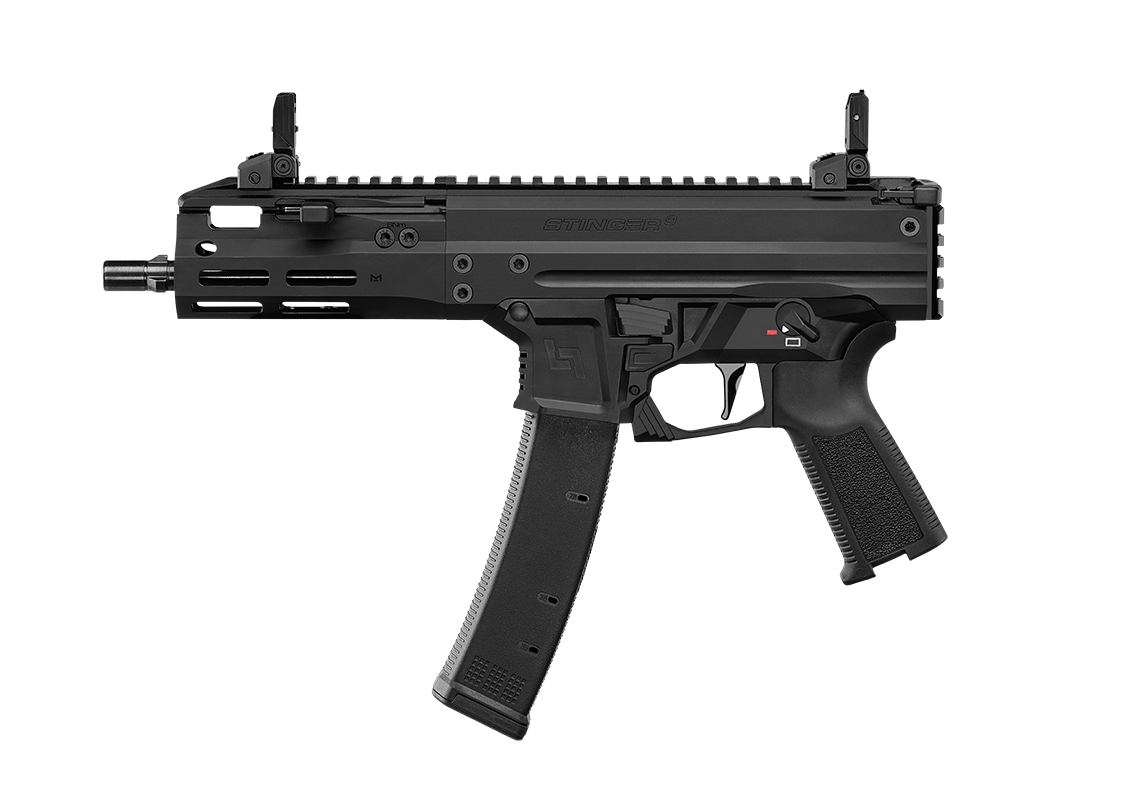

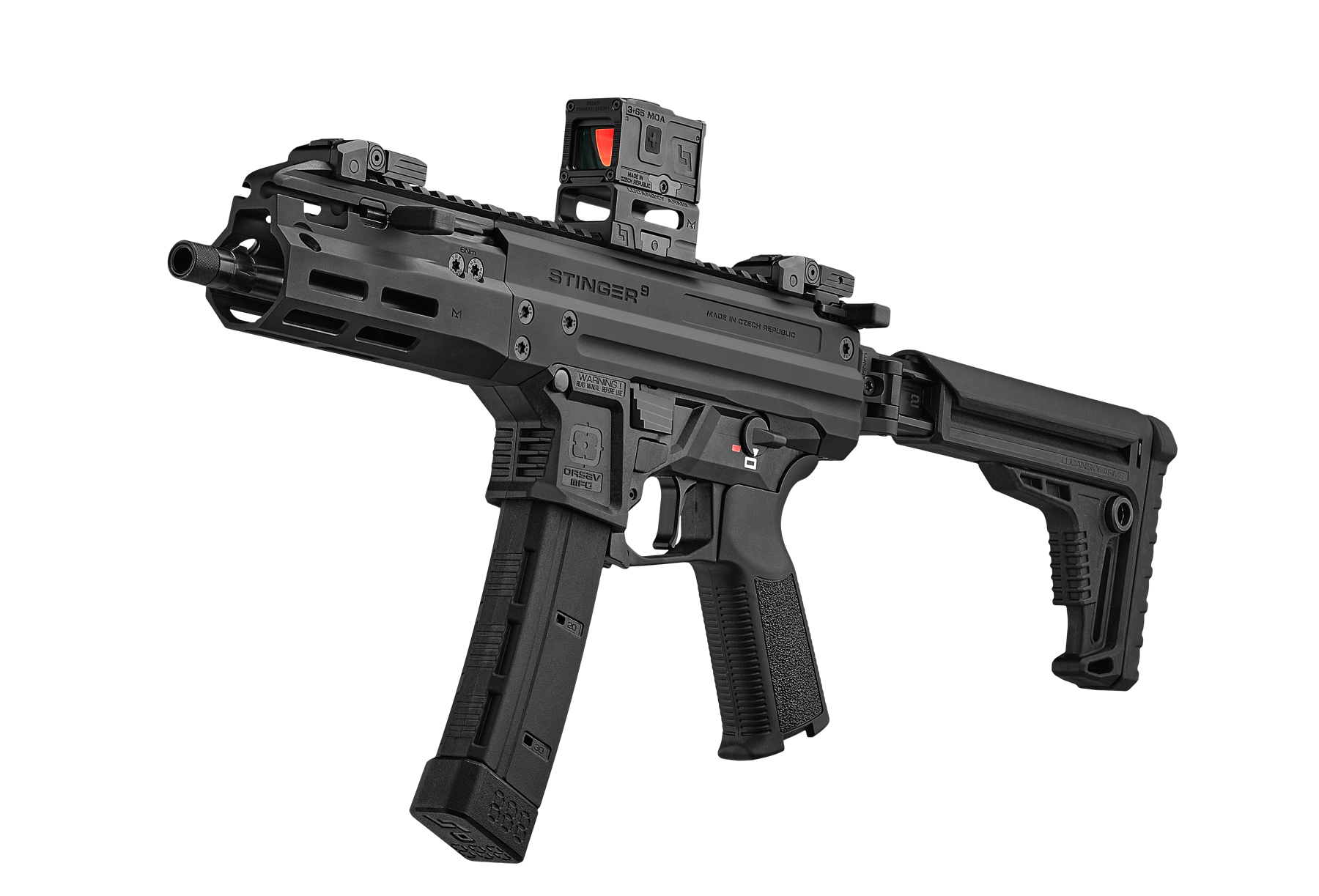

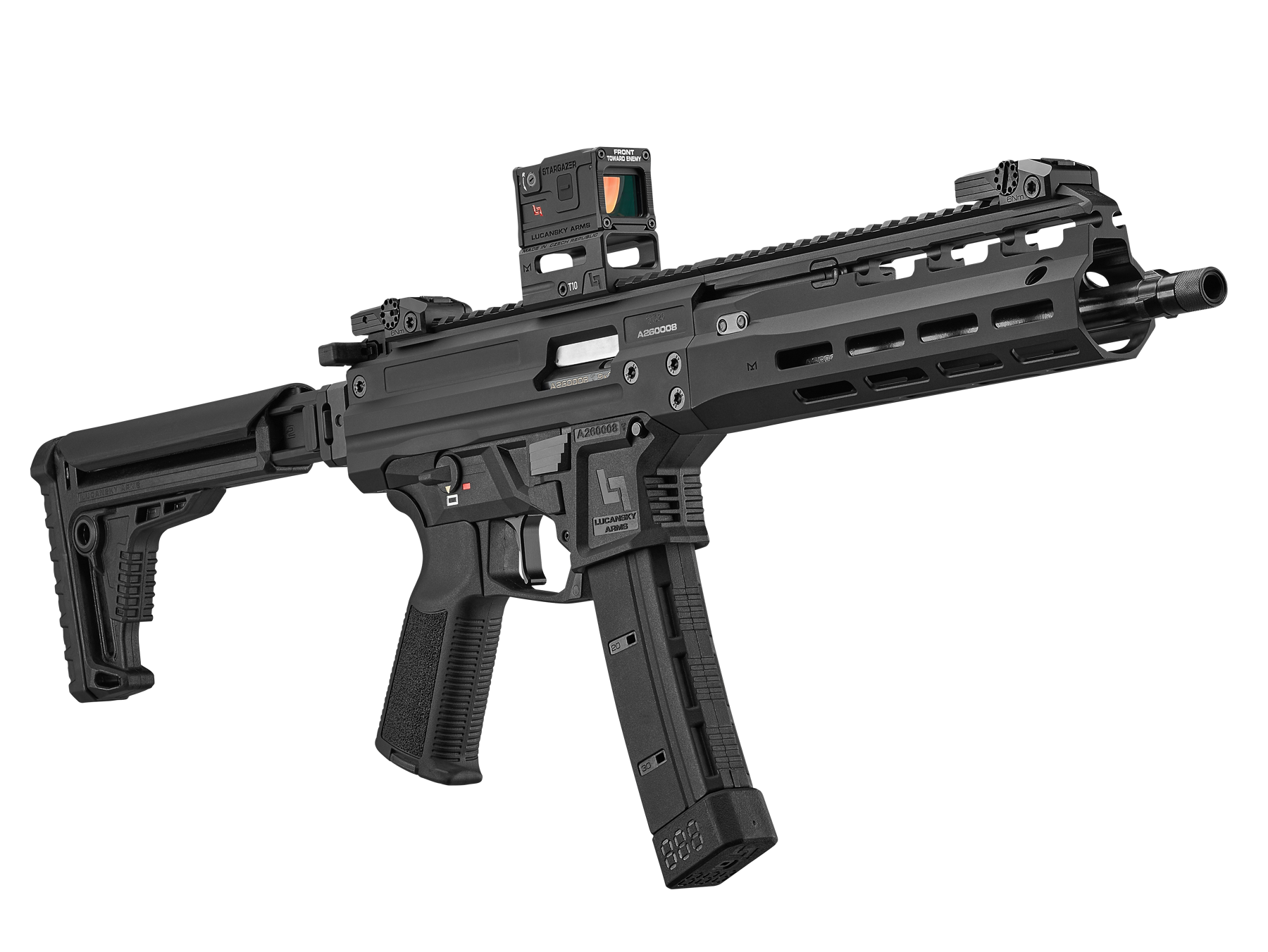

STINGER 9
Stinger 9 is the ultimate next generation 9mm Subgun/ PCC which incorporates our patented Delayed Matter Technology™ recoil reducing bolt system. Stinger 9 sets a new standard in performance and reliability while boasting reduced recoil, low weight, compact dimensions, redundant operating controls, and extensive user customization possibilities.
KEY FEATURES
Recoil Management
Our patented Delayed Matter Technology™ recoil reducing bolt system combines both the reliability and durability of a blowback system, with the significantly reduced felt recoil typically associated with both roller delayed and gas operated systems.
Compact Dimensions
We designed the Stinger 9 to deliver exceptional performance, reliability, and superior ergonomics in the most compact, lightest weight aluminum frame in its class.
User Customization
Stinger 9 features a modular design which allows users to quickly and easily swap out handguards, barrels, triggers, buttstocks, controls, pistol grips – almost every component, for a truly individualized customization experience.
Redundant Controls
Bred from a combination of Scorpion heritage and AR15 ergonomics, the Stinger 9’s controls are completely ambidextrous. Featuring both a forward side charging handle and an AR style rear charger, the user can remove one of the charging options, if so desired. Magazines can be released in the traditional European style or via an AR style release button.
Magazines
Stinger 9 uses the widely available, reliable, and relatively inexpensive OEM and aftermarket compatible Scorpion magazines.
Aftermarket Support
Lucansky Arms releases free data on some of the peripheries so aftermarket companies can easily produce an endless variety of accessories. Individual users are also welcome to use 3D printers to explore their own custom ergonomics, resulting in a truly unique, distinctive, individualized build.
Trigger
The Stinger 9 trigger set is based on the widely used AR-15 trigger and offers a wide range of customization.
Delayed Matter Technology™ Recoil Reduction System
Delayed Matter Technology™ is a dynamic recoil reduction system that functions on the principle of dividing the mass of the bolt into two separate parts. Each piece of bolt’s mass has its own specific release timing and its own unique recoil travel length. This technology of two separate parts, each with its own specific mass, traveling at different times and different rates, mutually cancels the recoil energy at the very end of the system’s stroke. At the same time, the DMT™ system does not incorporate any small moving parts and preserves the rigidity and reliability of a blowback bolt.
TTD table:
| MODEL: | STINGER 9 – 4″ | STINGER 9 – 8″ | STINGER 9 PRO – 8″ | STINGER 9 – 16″ |
| CALIBER: | 9mm Luger | 9mm Luger | 9mm Luger | 9mm Luger |
| MAGAZINE: | 30rd CZ Scorpion | 30rd CZ Scorpion | 30rd CZ Scorpion | 30rd CZ Scorpion |
| ACTION TYPE: | Semi-Auto | Semi-Auto | Full-Auto | Semi-Auto |
| OPERATING SYSTEM: | DMT™ system | DMT™ system | DMT™ system | DMT™ system |
| STOCK CONNECTION: | Piccatiny Rail | Piccatiny Rail | Piccatiny Rail | Piccatiny Rail |
| BARREL: | Cold Hammer Forged | Cold Hammer Forged | Cold Hammer Forged | Cold Hammer Forged |
| TRIGGER: | AR Style Single Stage | AR Style Single Stage | AR Style Single Stage | AR Style Single Stage |
| TWIST RATE: | 1:10 | 1:10 | 1:10 | 1:10 |
| UPPER MATERIAL: | Alloy | Alloy | Alloy | Alloy |
| LOWER MATERIAL: | Polymer | Polymer | Polymer/Alloy | Polymer |
| HANDGUARD MATERIAL: | Alloy | Alloy | Alloy | Alloy |
| GRIP: | Polymer AR Compatible | Polymer AR Compatible | Polymer AR Compatible | Polymer AR Compatible |
| UPPER FINISH: | Hard Coat Anodized | Hard Coat Anodized | Hard Coat Anodized | Hard Coat Anodized |
| CONTROLS: | 45 Degree | 45 Degree | 45 Degree | 45 Degree |
| CHARGING HANDLE: | Both: AR and Scorpion | Both: AR and Scorpion | Both: AR and Scorpion | Both: AR and Scorpion |
| ACCESSORY RAIL: | M-LOK | M-LOK | M-LOK | M-LOK |
| WEIGHT W/O MAG: | TBD | 1950g/4.29 lbs | TBD | TBD |
| OVERALL LENGTH: | TBD | 390 mm/ 15,3″ | TBD | TBD |
| OVERALL WIDTH: | 53 mm / 2,1″ | 53 mm / 2,1″ | 53 mm / 2,1″ | 53 mm / 2,1″ |
| HEIGHT: | 201 mm / 7.9″ | 201 mm / 7.9″ | 201 mm / 7.9″ | 201 mm / 7.9″ |
| THREAD: | 1/2×28″ | 1/2×28″ | 1/2×28″ | 1/2×28″ |
| MUZZLE DEVICE | 3-LUG | 3-LUG | 3-LUG | 3-LUG |
MSRP: COMING SOON
